Our Production

OUR PRODUCT RANGE

Premium Steel Solutions for Industrial Excellence

Rolling Mill Products

Capacity: 1,14,000 MT/Annum

HR SHEET

1.2 mm to 4 mm thickness
900 mm to 1830 mm width
2000 mm to CTL length

Hot Rolled Sheets with excellent surface finish and consistent properties. Ideal for automotive panels, appliances, and general fabrication.

HR PLATE

2 mm to 100 mm thickness
1250 mm to 3000 mm width
2000 mm to 12600 mm length

High strength plates with excellent weldability and formability. Used in structural applications, heavy machinery, and construction equipment.

HT PLATE

5 mm to 100 mm thickness
1250 mm to 12600 mm width
2000 mm to 12600 mm length

Heat-treated plates with enhanced mechanical properties for high-temperature applications including boilers and thermal power plants.

CHEQUERED PLATE

2 mm to 10 mm thickness
1250 mm to 1500 mm width
2000 mm to CTL length

Diamond pattern plates with superior anti-skid properties. Widely used in industrial flooring, stair treads, and vehicle running boards.

Product Highlights

Steel Products
Our premium quality steel products

Key Applications

  • Agriculture Equipment: Tractor parts
  • Automotive Frames: Chassis, body panels
  • Construction: Beams, columns, roofing
  • Fabrication: Machine parts, storage systems
  • Railway: Bogies, wagon components, tracks

Product Details

Our HR Sheets are manufactured using state-of-the-art rolling technology to ensure consistent quality and mechanical properties. The hot rolling process gives these sheets excellent formability and surface finish, making them ideal for applications requiring.

Specifications
Thickness

1.2 mm to 4 mm

Width

900 mm to 1830 mm

Length

2000 mm to CTL

Technical Properties
  • Tensile Strength: 410-540 MPa
  • Yield Strength: 250 MPa min
  • Elongation: 23% min
  • Surface Finish: Mill finish, pickled
Applications
Automotive Panels Appliances Fabrication Construction Commercial Vehicles

Our HR Plates are produced under controlled conditions to ensure uniform mechanical properties throughout the material. These plates offer excellent weldability and can be easily formed into various shapes, making them suitable for heavy structural applications.

Specifications
Thickness

2 mm to 100 mm

Width

1250 mm to 3000 mm

Length

2000 mm to 12600 mm

Technical Properties
  • Tensile Strength: 410-540 MPa
  • Yield Strength: 250 MPa min
  • Elongation: 23% min
  • Impact Test: 27J at -20°C
Applications
Structural Work Railway Components Shipbuilding Heavy Vehicles Industrial Machinery

Mild Steel Plates are our most versatile product, offering excellent machinability and weldability. These plates are produced with tight thickness tolerances and superior flatness, making them ideal for precision applications in various industries.

Specifications
Thickness

3 mm to 150 mm

Width

1250 mm to 2500 mm

Length

2000 mm to 12600 mm

Technical Properties
  • Carbon Content: 0.15-0.25%
  • Tensile Strength: 370-500 MPa
  • Yield Strength: 235 MPa min
  • Elongation: 25% min
Applications
Construction Automotive Shipbuilding Heavy Engineering Fabrication

Our Chequered Plates feature a raised diamond pattern that provides excellent slip resistance while maintaining structural integrity. These plates are available in various patterns and can be customized to meet specific requirements for different industrial applications.

Specifications
Thickness

2 mm to 10 mm

Width

1250 mm to 1500 mm

Length

2000 mm to CTL

Technical Properties
  • Pattern Height: 1.0-2.5 mm
  • Tensile Strength: 410-540 MPa
  • Surface: Mill finish or painted
  • Slip Resistance: DIN 51130 R10-R13
Applications
Industrial Flooring Vehicle Platforms Power Plants Chemical Plants Railway Platforms

Quality Assurance

Testing Facilities

  • Chemical Lab: Composition analysis
  • Spectrometer: Material verification
  • UTM: Tensile testing
  • Impact Tester: Toughness evaluation
  • Projector: Dimensional checks
  • Galvanizing Tests: Coating quality

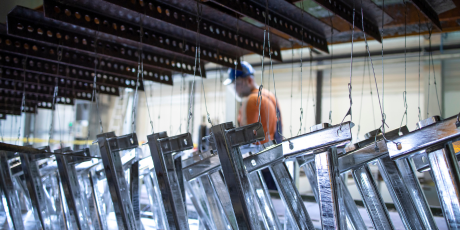

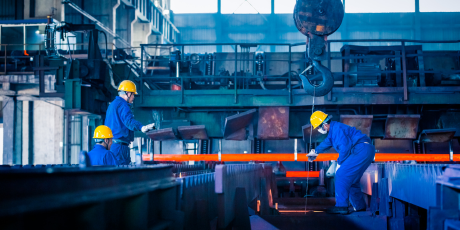

Manufacturing Plant
Our state-of-the-art manufacturing facility with ISO 9001 certification

Production Capacity

17,000 Tons Per Month

Structural Steel - Unit I 7,000 TPM
Structural Steel - Unit II 10,000 TPM
Quality Certifications
ISO 9001:2015 ISO 14001 OHSAS 18001 IS 2062
